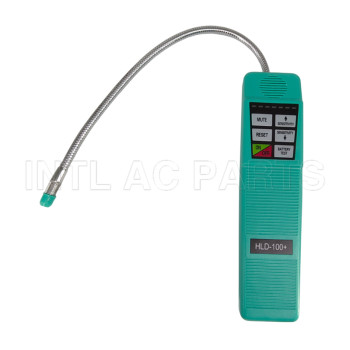

Freon Halogen Refrigerant gas leak detector leakage R134a R134 HVAC sensitivity Tool
- group name
- Hvac Tools
- Min Order
- 1 set
- brand name
- INTL Auto Air Conditioning Compressor
- model
- INTL-XG117
- Nearest port for product export
- HUANGPU, SHENZHEN, NINGBO, SHANGHAI
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- Export mode
- Have the independent export and import right
- update time
- Fri, 31 Jan 2025 05:51:52 GMT
Paramtents
Size 14 inches (35.5cm)
Type tools
UAC TO 11752
Packging & Delivery
-
Min Order1 set
Briefing
Detailed
PRODUCT PROFILE
| Model Number | INTL-XG117 |
|---|
OEM:
UAC:TO 11752
Four Seasons:69010
Global Parts Distributors:5811671
Master Cool:55800
Omega:MT1734
Santech:MT1734
Features:
- Excellent sensor with high sensitivity, 3g/yr (0.1oz/yr)
- Detects All KINDS OF halogenated refrigerants
- Flexible stainless steel probe reach to almost any tight space
- Single color LED display with 7-level leak alarm
- Tricolor display of battery voltage(Green, Orange & Red)
- RESET time sensitivity adjustment
- Real time sensitivity adjustment
- Battery test and mute function
- 14 inches (35.5cm) flexible stainless steel probe
- One extra spare sensing tip included
Applications:
Detect leaks in air-conditionings, freezing systems and so on.
This unit responds to ALL haloge-nated (with Chlorine and Fluorine included) refrigerants.
This includes, but is not limited to:
CFCs : | R12, R11, R500, R503etc. |
|---|---|
HCFCs : | R22, R123, R124, R502etc. |
HFCs : | R410a,R134a, R404a, R125 etc. |
Detect Ethylene Oxide gas leaks in hospital sterilizing equipment(it will detect the halogenated carrier gas).
Detect SF-6 in high voltage circuit breakers.
Detect most gases that contain Chlorine, Fluorine, and Bromine (halogen gases).
Detect cleaning agents used in dry cleaning applications such as perchloroethylene.
Detects halogen gases in fire-extinguishing system.
Specification:
- Maximum sensitivity: 0.1 oz/yr ( 3g/yr ) for all halogen refrigerants
- Working Mode:Continuous and no limit
- Working temperature: 0°C~52°C
- Reaction time: Instant
- Resetting time: 2 seconds
- Warm-up time: About 3 seconds
- Sensor tip life under continuous operation: More than 50 hours in normal detecting status
- Power Supply: 3V DV, Two-cell C Alkaline batteries (Not include)
- Probe length: 14"
- Overall Dimension: 9 1/2" x 2 1/2" x 2 1/2"
Package Included:
- 1 x Portable leak detector
- 1 x Extra spare sensing tip
- 1 x Full English manual
- 2 x battery
Notice:
1. To ensure the high sensitivity, make sure the tip and protector is clean before using everytime.
2. Switch off the machine after use. Remove batteries when unused for a long time, so that it could prolong life time.
3. Operate the leak detector according to the instruction manual.
