INTL-HF5205 #8 45 Degree Aluminum Beadlock Hydraulic Hose Fitting Female O-ring R134a
- group name
- Hose Fitting
- Min Order
- 1 piece
- brand name
- INTL Auto Air Conditioning Compressor
- model
- INTL-HF5205
- Nearest port for product export
- HUANGPU, SHENZHEN, NINGBO, SHANGHAI
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- Export mode
- Have the independent export and import right
- update time
- Sun, 24 Nov 2024 06:44:33 GMT
Paramtents
Material aluminum
Type Coupling
Item Type Air-conditioning Installation
Item Width 10 cm
Material Type aluminum
Item Height 10 cm
Item Length 15 cm
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed
PRODUCT PROFILE

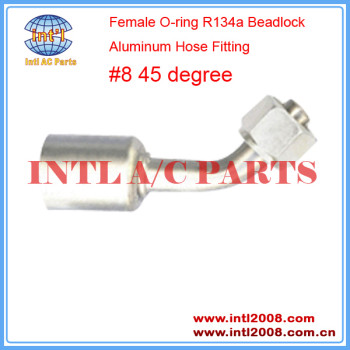

Female O-ring R134a Beadlock Aluminum Hose Fitting #8 45 Degree
Model Number: INTL-HF5205
Size: #12 45 Degree
Material: Aluminum
| Female O-ring R-134a Beadlock Fitting (ALU. JOINT+ALU. JACKET) | |||
| Part NO. | Specification | Part NO. | Specification |
| INTL-HF5201 | #6/Straight | INTL-HF5207 | #10/Straight |
| INTL-HF5202 | #6/45° | INTL-HF5208 | #10/45° |
| INTL-HF5203 | #6/90° | INTL-HF5209 | #10/90° |
| INTL-HF5204 | #8/Straight | INTL-HF5210 | #12/Straight |
| INTL-HF5205 | #8/45° | INTL-HF5211 | #12/45° |
| INTL-HF5206 | #8/90° | INTL-HF5212 | #12/90° |
| Standard Jacket | ||||
| Part NO. | Specification | B= Rear Bore Diameter (MM) | A= Inner Bore Diameter(MM) | C=length (MM) |
| INTL-AJ8101 | #6-5/16 | 8.2±0.4 | 19±0.5 | 35 |
| INTL-AJ8102 | #8-13/32 | 10.5±0.4 | 23±0.5 | 33 |
| INTL-AJ8103 | #10-1/2A | 13±0.5 | 23±0.8 | 33 |
| INTL-AJ8104 | #10-1/2B | 13±0.5 | 25.4±0.8 | 33 |
| INTL-AJ8105 | #12-5/8 | 16.1±0.5 | 28.6±0.8 | 33 |
| Reduced Jacket | ||||
| Part NO. | Specification | B= Rear Bore Diameter (MM) | A= Inner Bore Diameter(MM) | C=length (MM) |
| INTL-AJ8106 | A1:#6-5/16 | 8.2±0.3 | 15.2±0.4 | 35 |
| INTL-AJ8107 | A2:#8-13/32 | 11.4±0.4 | 18.4±0.4 | 33 |
| INTL-AJ8108 | A3:#10-1/2 | 13±0.4 | 21±0.5 | 33 |
| INTL-AJ8109 | A4:#12-5/8 | 15.2±0.4 | 23±0.5 | 33 |
