FS10 ac Compressor clutch assy FORD GALAXY KTT040094

group name: Ford

Min Order: 1 piece

brand name: INTL Auto Air Conditioning Compressor

model: INTL-CL670

Nearest port for product export: HUANGPU, SHENZHEN, NINGBO, SHANGHAI

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow

Export mode: Have the independent export and import right

update time: Tue, 04 Nov 2025 20:36:03 GMT

contact supplier

Paramtents

Type CLUTCH
Car Make FORD GALAXY
compressor clutch FS10
clutch pulley 6PK
Bearing 305523
Pulley Diameter 115-125

Packging & Delivery

Min Order1 piece

Briefing

FS10 ac Compressor clutch assy FORD GALAXY KTT040094

Detailed

Auto ac compressor clutchs for all the compressors we supply are available.

For any inquiry, pls contact us. Reasonable price & Fast delivery!

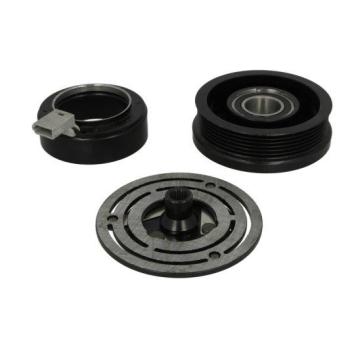

Our clutch set includes:

Hub, Bearing, Pulley, Coil

Specifications:

Model no: INTL-CL670

Compressor type: 10PA17C

Clutch: 6 grooves

Pulley Diameter: 125MM

Volt : 12V

Model no	INTL-CL670
Type	FS10
Voltage	12V
Grooves	6PK
Pulley Diameter	115-125
Bearing	305523

OEM part number:

KTT040094

Car make:

FORD

25 vehicles

COUGAR

1998 - 2001

Body Model Produced KW HP CCM

COUGAR (EC_) 2.5 V6 24V 1998-08 - 2001-12 125 170 2544

MONDEO

1994 - 2000

Body Model Produced KW HP CCM

MONDEO I Turnier (BNP) 2.5 i 24V 1994-07 - 1996-08 125 170 2544

MONDEO II (BAP) 2.5 24V 1996-08 - 2000-09 125 170 2544

MONDEO II Turnier (BNP) 2.5 24V 1996-08 - 2000-09 125 170 2544

MONDEO I (GBP) 2.5 i 24V 1994-07 - 1996-08 125 170 2544

MONDEO I Saloon (GBP) 2.5 i 24V 1994-07 - 1996-08 125 170 2544

MONDEO II Saloon (BFP) 2.5 24V 1996-08 - 2000-09 125 170 2544

SCORPIO

1994 - 1998

Body Model Produced KW HP CCM

SCORPIO II Turnier (GNR, GGR) 2.0 i 1994-10 - 1998-08 85 115 1998

SCORPIO II Turnier (GNR, GGR) 2.0 i 16V 1994-10 - 1998-08 100 136 1998

SCORPIO II Turnier (GNR, GGR) 2.3 i 16V 1996-06 - 1998-08 108 147 2295

SCORPIO II (GFR, GGR) 2.0 i 1994-10 - 1998-08 85 115 1998

SCORPIO II (GFR, GGR) 2.0 i 16V 1994-10 - 1998-08 100 136 1998

SCORPIO II (GFR, GGR) 2.3 i 16V 1996-06 - 1998-08 108 147 2295

TRANSIT

2000 - 2006

Body Model Produced KW HP CCM

TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.0 DI (F_E_, F_F_, F_G_) 2000-08 - 2006-05 63 86 1998

TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.0 TDCi (F_F_, F_E_, F_G_) 2002-08 - 2006-05 92 125 1998

TRANSIT Van (FA_ _) 2.0 DI (FAE_, FAF_, FAG_) 2000-08 - 2006-05 55 75 1998

TRANSIT Van (FA_ _) 2.0 DI (FAE_, FAF_, FAG_) 2000-08 - 2006-05 74 100 1998

TRANSIT Van (FA_ _) 2.0 DI (FAE_, FAF_, FAG_) 2000-08 - 2006-05 63 86 1998

TRANSIT Van (FA_ _) 2.0 TDCi 2002-08 - 2006-05 92 125 1998

TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.0 DI (F_E_, F_F_, F_G_) 2000-08 - 2006-05 55 75 1998

TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.0 DI (F_E_, F_F_, F_G_) 2000-08 - 2006-05 74 100 1998

TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.0 DI (F_E_, F_F_) 2000-08 - 2006-05 55 75 1998

TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.0 DI (F_E_, F_F_) 2000-08 - 2006-05 74 100 1998

TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.0 DI (F_E_, F_F_) 2000-08 - 2006-05 63 86 1998

TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.0 TDCi (F_E_, F_F_) 2002-08 - 2006-05 92 125 1998

This clutch is applicable for the following compressor:
