71500 Hydraulic Hydra-Krimp A/C hose crimping tool Air Conditioner Hose Fitting Crimper machine

Experience for over 20 years.

Covers 85% of passenger cars, trucks, agricultural machinery, excavators, heavy duty, etc.

More than 30 new items being developed every month.

Main Market:

To Europe (Poland, UK, Bulgaria, Russia etc), America, Canada, South America (Brazil, Mexico, Peru, Argentina,Panama etc), Australia, etc

Description:

The lightweight hand-held hydraulic press is very portable and ideal for shop and field applications.

The Hydra- Krimp can be used on both beaded and barbed hose fittings.

The kit comes with a complete set of dies covering hose sizes #8, #10, #12 and reduced barrier #6, #8, #10 and #12.

The dies snap quickly into the press fixture requiring no pins or screws.

Kit comes in custom molded Hydra-Krimp Hose Crimper dies snap quickly into the press fixture, requiring no pins or screws.

Kit comes in custom molded case.

Details:

Using the 71500 Crimp Machine, Crimping barbed and beaded fittings as easy as 1 - 2 - 3 !

 The lightweight hand-held hydraulic press is very portable and ideal for shop and field applications.

Pre-operation set-up:

Open the relief valve to fully recess the piston

Rotate the yoke fully counter clockwise to bottom out the adapter seat

Operating Instructions:

1.Remove pin and loose the handle till you can Open top yoke

2.select correct die set (refer to back page for description )

3.insert the die into joke

4.position fitting and hose in the crimper and close the yoke.

5.insert pin securely

6.Turn Body of tool clock wise until dies are snug against hose fitting

7.Turn hydraulic valve to closed position

8. Pump handle to crimp fitting onto hose .continue pumping until handle comes to a stop

9. Once crimp is complete,turn hydraulic valve to OPEN position

WARNING:

Do NOT actuate the piston without having a hose and fitting in plave to crimp.

This could cause damage to the tool. BE CAREFUL not to place hands near any pinch point while using the tool!

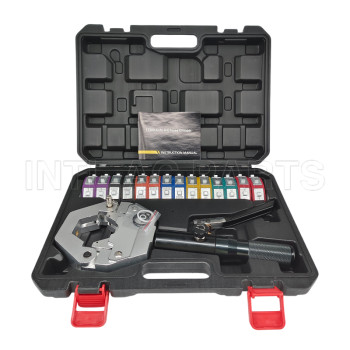

In The Box：

71500 - 001A x Hydra - Krimp Pump

71500-001B x ydra-Krimp Yoke

71500-001C x Complete Die Set Assembly (7 pc. set)

71500 - 6 x Die Set - #6 (5/16in)

Die Set x - #8(13/32in) (Reduced Barrier)

71500 - 8 x Die Set - #8 (13/32in)

71500 - 10 x Die Set - #10 (1/2in)

71500 - 12 x Die Set - #12 (5/8in)

71500 - 6SRB x Die Set - #6 (5/16in) (Reduced Barrier)

71500 - 10SRB x Die Set - #10 (1/2in) (Reduced Barrier)

71500 - 12SRB x Die Set - #12 (5/8in) (Reduced Barrier)

71500-PB x Custom Molded Box

Features：

The lightweight hand-held hydraulic press is very portable and ideal for shop and field applications

The Hydra- Krimp can be used on both beaded and barbed hose fittings

The kit comes with a complete set of dies covering hose sizes #8, #10, #12 and reduced

Barrier #6, #8, #10 and #12

The dies snap quickly into the press fixture requiring no pins or screws.

Kit comes in custom molded.
